ホームENGLISH TOPProductSmall Size Container Cleaning Machine

Small Size Container Cleaning Machine

SMALL SIZE CONTAINER CLEANING MACHINE

Customer’s concept

□We request to clean narrow-mouth bottles and containers.
□We request to automatize the system and operate it unattended.



KIT design

□KIT offers the design available to set-up multiple sizes of containers and appliances.
□KIT proposes a nozzle which needs little driving power source so that the occurrence of dust is curbed.

Specifications
Facility dimensions W1900×D1291×H2700mm
Weight about 1.5t
Electrical consumption 7KW
Cleaning object Centrifugal pipe,7L glass bottle,50L Polypropylene container
Cleaning Rough cleaning by WFI (circulation),Detergent cleaning,Rinse finish (WFI)゙
Drying Air blow
Conducting volume 5 bottles/13.5 minutes (7L glass bottle)
Operation Control panel/Touch panel
※ Specifications can be changed depending on various situations.

Introduction Image

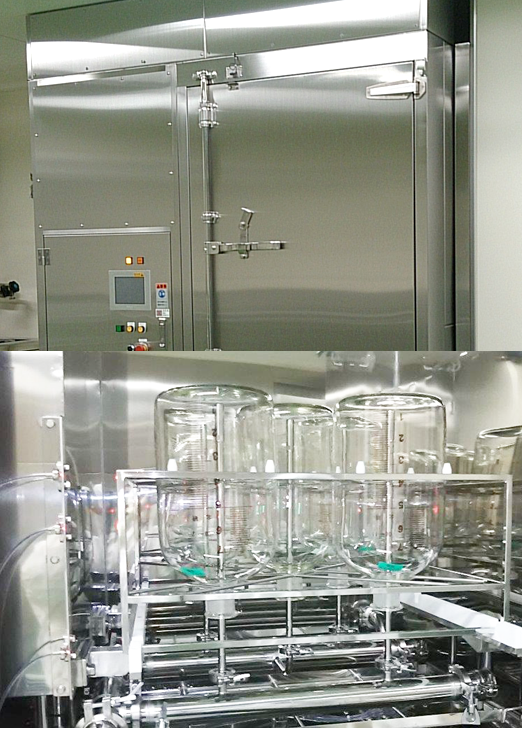

【Installed example】 Automatic cleaning device

Automatic cleaning device

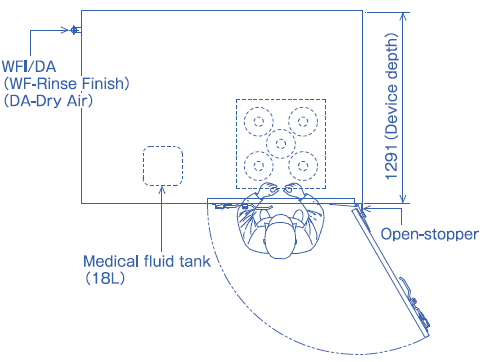

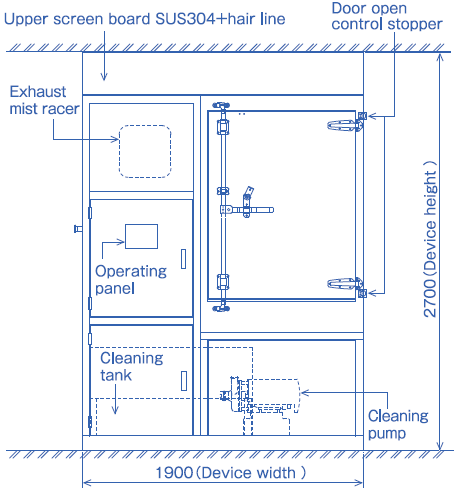

Design image

Design image

Design image

Design image

More than above installed example, KIT has many design solutions to meet various requests. Depending the conducting volume, cleaning pressure and flow rate, etc., there are pump unit separate type and added drying unit type.
