Sanitary Container Cleaning System
An automatic sanitary container cleaning/drying machine, which is connected with logistic conveyance, has varieties of patterns Removing the lid top, cleaning, drying and conveyance are all automatically conducted.
Automatic / 2- booth type
Customer’s concept
□Customer’s concept
□We request fully automatic operation, if possible.
□We request to clean the appliances together.
KIT’ design
□KIT offers an automatic cleaning and drying system available to remove the container’s lid as well.
□KIT offers an automatic cleaning and drying system available to remove the container’s lid as well.
□Designing exclusive use of tray makes it available to clean appliances together.
| Specifications | |
|---|---|
| Specifications | W11200xD7205xH3500mm (Room size) |
| Weight | about 8.1t (at the time pump filled with water) |
| Electrical Consumption | 32KW |
| Cleaning object | 200L Sanitary container 25L Sanitary container&Lid |
| Cleaning | Hot purified water cleaning (inside, outside, lid) Alkaline detergent cleaning |
| Drying | Hot air circulation method With HEPA unit |
| Cooling | Room air |
| Operation | Control panel, touch panel |
| ※The specifications can be changed depending on the container form, inner structure and weight. | |
Introduction Image

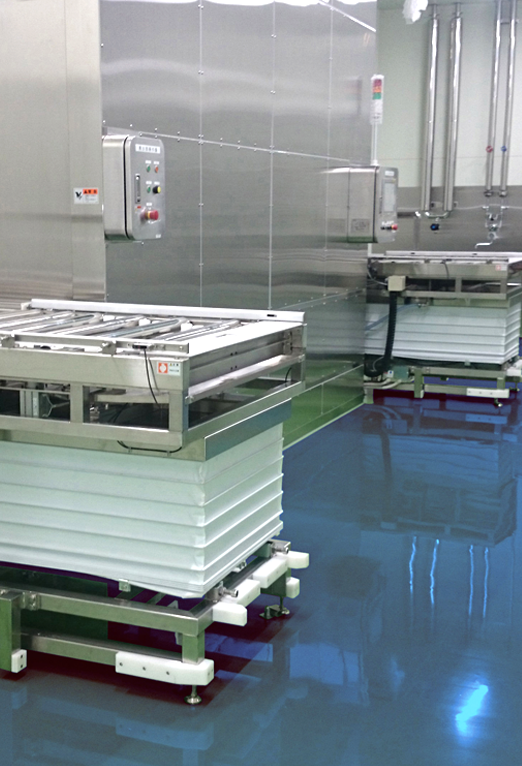

【Installed example】 Sanitary container automatic cleaning system

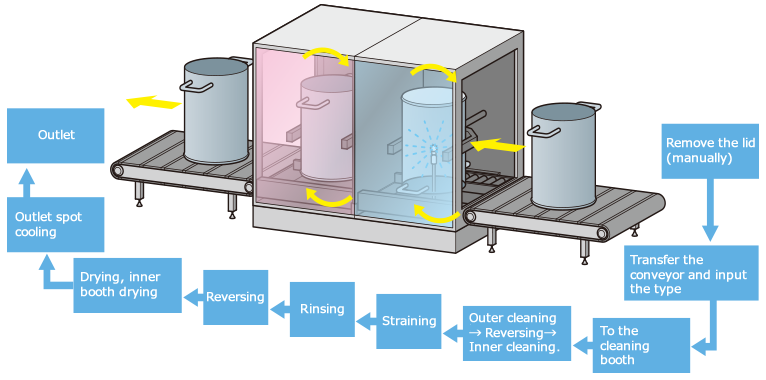

Driving flow
【Option: An automatic top-cover removing function】
It is available to clean the container lid together by absorbing and removing the lid.

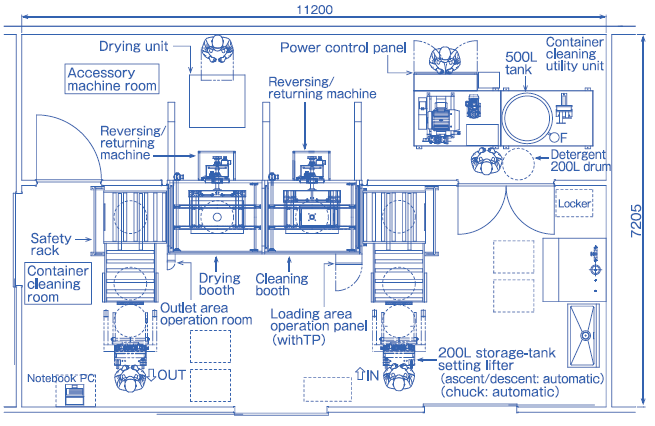

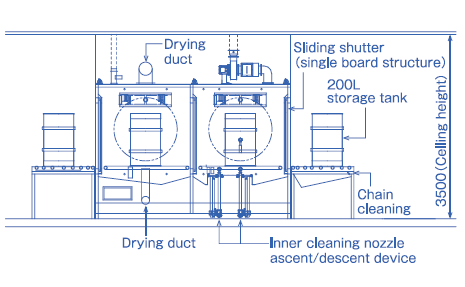

Design image
Design image
Rack type /1-booth type
Customer’s concept
□We request to clean a small number of containers.
□We request to operate without manual labour.
□We request to clean the lid together.
Installed example
□Available to automatically clean and dry five sanitary containers and their lids.
□A semi-automatic setup is also available.
| Specifications | |
|---|---|
| Facility dimensions | W2000xD1250xH3480mm |
| Weight | about 1.1t |
| Electrical consumption | 3KW |
| Cleaning object | Five 100L sanitary containers and their lids |
| Cleaning | Hot water cleaning（inside, outside, lid）,Purified water lines |
| Drying | Air blow with HEPA unit |
| Cooling | Room air |
| Operation | Control panel/Touch panel |
Introduction Image
【Installed example】 1 booth cleaning & drying system

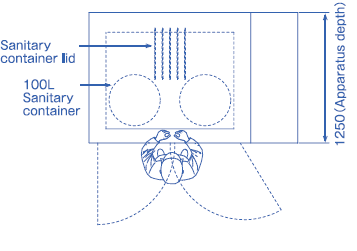

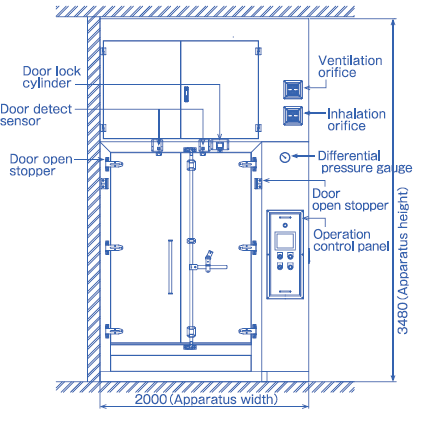

Design image
Design image
Manual / 1-booth type
Customer’s concept
□We request to clean a large-size container.
□We request to clean with saving the space and man’s labour.
KIT design
□Available to automatically clean and dry large-size container up to hight 900 mm.
| specifications | |
|---|---|
| Facility dimensions | W1600xD1600xH2650mm |
| Weight | About 1.4t |
| Electrical consumption | 6KW |
| Cleaning object | Single 200L or 140L sanitary container (Maximum height: 900 mm) |
| Cleaning | Hot water cleaning (interior and exterior) ,purified water rinse |
| Drying | Air blowing |
| Operation | Control panel/Touch panel |
Introduction Image
【Installed example】 One booth cleaning system

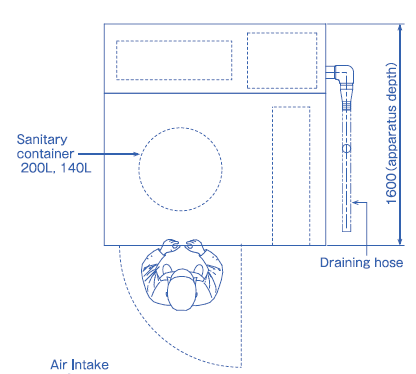

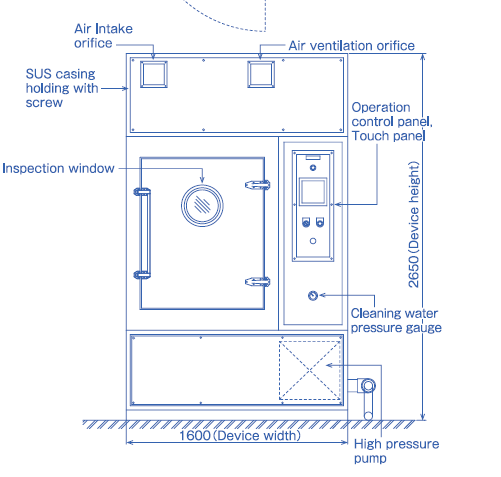

Design image
Design image
※Other than the above installed example, depending on the number of items, cleaning pressure or the flow rate.
KIT can also offer pump-unit-separately-installed-type and drying-unit-adding-type, etc.
