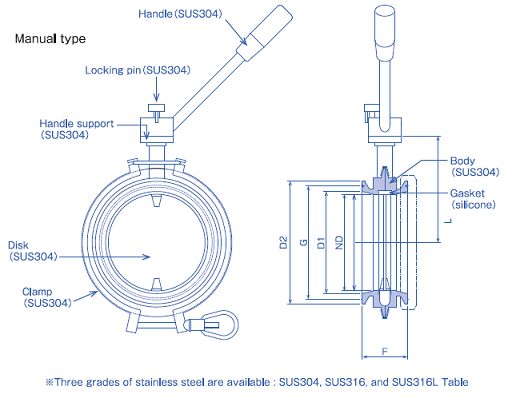

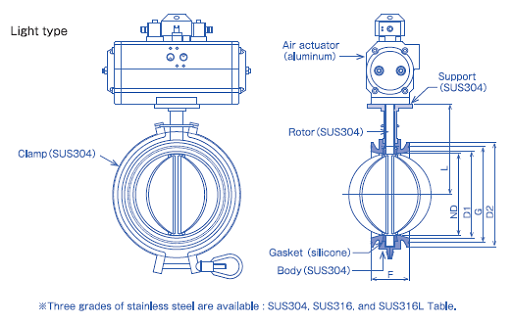

Sanitary Butterfly valve
Sanitary Butterfly valve
-

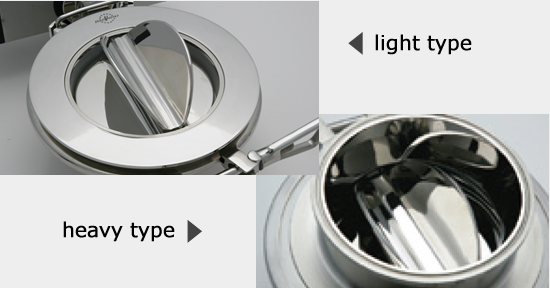

Product image
-
Product image
| Type | Size (Gas tube standard 30 Ferrule) | Standard specifications | optional specifications | |||||||
| ND | D1 | D2 | G | F | L | Finish | Finish | Parts | ||
| 80A | 80 | 83.1 | 108 | 97.1 | 60 | 120 | Powder contact area buffing400(Ra<0.1μ) Exterior buffing200(Ra<0.6μ) |
Electrolytic polishing | Japanese standard Ferrule packing silicone Japanese standard Closing Ferrule SUS304 SUS316 Japanese standard clamp for low pressure/high pressure |
|
| 100A(long) | 100 | 108.3 | 135 | 123 | 70 | 130 | ||||
| 100A(short) | 100 | 108.3 | 135 | 123 | 60 | 130 | ||||
| 150A | 150 | 158.4 | 190 | 175 | 70 | 165 | ||||
| 200A | 200 | 208.3 | 244 | 230 | 70 | 190 | ||||
| 250A | 250 | 259.4 | 290 | 277 | 80 | 225 | ||||
| 300A | 300 | 309.5 | 344 | 330 | 80 | 250 | ||||

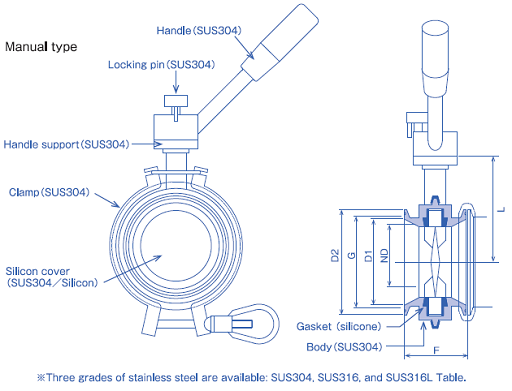

Sanitary Tablet valve (the valve for tablet)
-
Product image
-
Design image
| Type | Size (Gas tube standard 30 Ferrule) | Standard specifications | optional specifications | |||||||
| ND | D1 | D2 | G | F | L | Finish | Finish | Parts | ||
| 80A | 80 | 83.1 | 108 | 97.1 | 60 | 120 | Powder contact area buffing400(Ra<0.1μ) Exterior buffing200(Ra<0.6μ) |
Electrolytic polishing | Japanese standard Ferrule packing silicone Japanese standard Closing Ferrule SUS304 SUS316 Japanese standard clamp for low pressure/high pressure Custom modifications of materials and configurations are available. |
|
| 100A | 100 | 108.3 | 135 | 123 | 70 | 130 | ||||
| 150A | 150 | 158.4 | 190 | 175 | 70 | 165 | ||||
| 200A | 200 | 208.3 | 244 | 230 | 70 | 190 | ||||
| 250A | 250 | 259.4 | 290 | 277 | 80 | 225 | ||||
Sanitary Rotary valve
-
Product image
-
Design image
| Parts | Size (Gas tube standard 30 Ferrule) | Standard specifications | optional specifications | |||||||
| ND | D1 | D2 | G | F | L | Finish | Finish | Parts | ||
| 80A | 80 | 83.1 | 108 | 97.1 | 60 | 120 | Powder contact area buffing400(Ra<0.1μ) Exterior buffing200(Ra<0.6μ) |
Electrolytic polishing | Japanese standard Ferrule packing silicone Japanese standard Closing Ferrule SUS304 SUS316 Japanese standard clamp for low pressure/high pressure Custom modifications of materials and configurations are available. |
|
| 100A | 100 | 108.3 | 135 | 123 | 70 | 130 | ||||
| 150A | 150 | 158.4 | 190 | 175 | 70 | 165 | ||||
| 200A | 200 | 208.3 | 244 | 230 | 70 | 190 | ||||
| 250A | 250 | 259.4 | 290 | 277 | 80 | 225 | ||||
| 300A | 300 | 309.5 | 344 | 330 | 80 | 250 | ||||
