Lifting device & Pump tank unit

Water jet cylinder

A cylinder that expands and contracts due to the water pressure of the cleaning liquid and moves the nozzle up and down

  • Image of product

    Image of product
  • Image of designing

    Image of designing

Features

  1. Water Jet cylinder, which is driven only by the water pressure of cleaning liquid, performs stable moving.
  2. Since its piston is always in the upward direction, there is no danger of runaway or falling in the descending direction.
  3. It is easy to control the ascent and descent speed only by opening and closing the valve, and it is also possible to stop at any position.
  4. No need for lubrication and oil no worry about contamination.
  5. Complete non-oil specifications are also available.
  6. Because of its high pressure resistant flange structure, it can be used even under pressure (positive pressure / negative pressure) inside the tank.

Water jet cylinder and KIT nozzle

  • Features

    A fully automatic closed washing system can be constructed which completely shuts off the inside and the outside of the tank.

    01 It is driven only by the water pressure of cleaning liquid.

    1. Ascent and descent driven by water pressure is reliable and stable.
    2. The speed can be easily changed by only opening and closing its valve, and setting speed is always constant.
    3. Explosion proof specification
    4. No need for lubrication, no oil contamination
    5. Other facilities and construction costs are unnecessary.

    02 A fully automatic closed system is available.

    1. Water Jet Cylinder has high pressure resistance and connects to the tank with a fixed seal, so there is no gas leak.
    2. It is possible to start cleaning even if there is gas pressure inside the tank.
    3. Since it can start cleaning immediately after blowdown, the production process will be shortened.
    4. Solvent cleaning is also possible.
    5. There is no worry that germs will enter the tank from the outside.

    03 High safety

    1. Since the piston is always in the upward direction, there is no danger of runaway or falling in the descending direction.

    04 Simple design

    1. Compact space and width required for installation (Length of stroke + 500 mm is necessary)
    2. Installation is easy by flange fitting.
    3. The control system is also simple.A lot of variations of cleaning patterns can be obtained only by software change.

    Check features by video

  • Image of product

    Image of product

    Design image

    Design image

Rodless cylinder

Simple cleaning nozzle ascent/descent equipment



  • Image of product

    Image of product
  • Image of designing

    Image of designing

Features

  1. Air driven＆ low cost.
  2. It can be used outdoors by attaching a cover.
  3. Convergent cleaning can be performed at the setting position by using the brake attachment .
  4. Manufacturing long stroke (5m) type is available

Telescopic Rod cylinder

The cylinder that shrinks in two stages



  • Image of product

    Image of product
  • Image of designing

    Image of designing

Features

  1. A long stroke can be obtained by stretching the rod in two steps
  2. Installation is possible even at low ceiling height
  3. Since it is driven only by the water pressure of cleaning liquid, it performs stable moving.
  4. Since its piston is always in the upward direction, there is no danger of runaway or falling in the descending direction.
  5. It is easy to control the ascent and descent speed only by opening and closing the valve, and it is also possible to stop at any position.
  6. No need for lubrication and oil no worry about contamination.
  7. Complete non-oil specifications are also available.
  8. Because of its high pressure resistant flange structure, it can be used even under pressure (positive pressure / negative pressure) inside the tank.

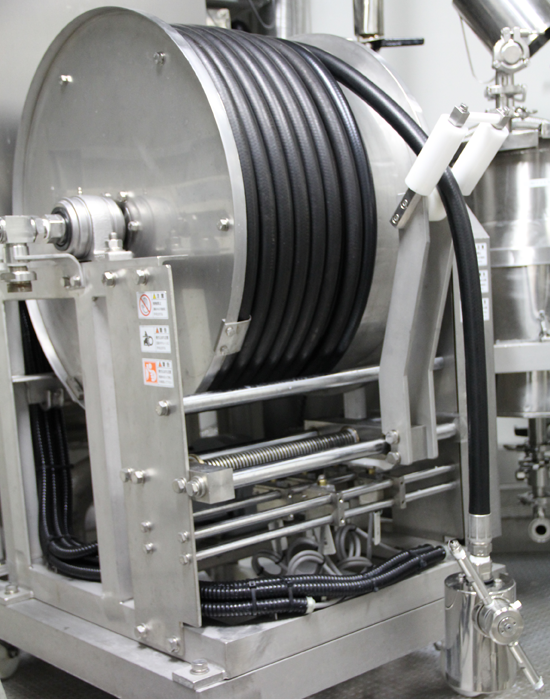

Hose reel

Hose reel flexibly responds to space limitations. We recommend using it with the KIT nozzle.



  • Image of product

    Image of product

  • Image of designing

    Image of designing

Features

  1. If you make the equipment portable, you can clean multiple tanks and equipment with one unit.
  2. Since the long hose stroke is available from compact equipment , it can be installed in existing low ceiling plant.
  3. You can detect the nozzle position and set a fine stop position.
  4. Combined with KIT nozzle, stable operation is possible without concern that the nozzle will shake.

Pump tank unit

The optimum unit can be selected according to the washing condition.



  • Fixed type pump tank unit product image

    Fixed type pump tank unit product image

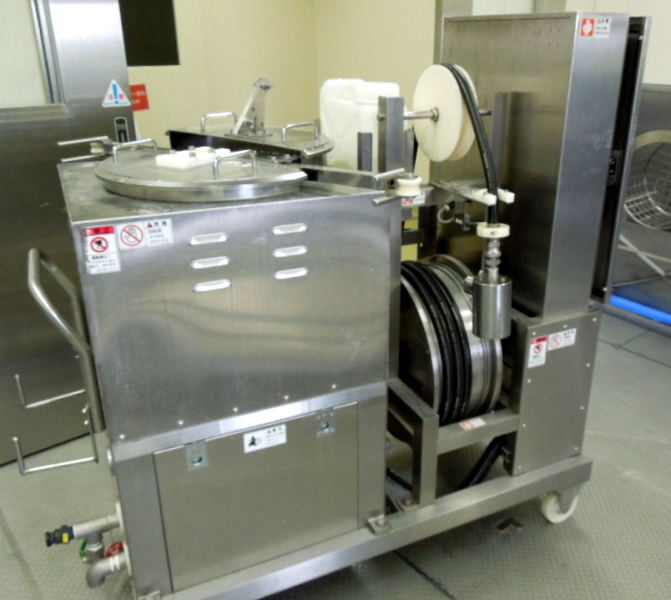

  • Portable pump tank unit product image

    Portable pump tank unit product image

Features

  1. We select and propose pump unit according to pressure, flow rate, washing condition and so on.
  2. Considering conditions such as installation space and operating environment, we will design a compact unit.
  3. Movable type, which can be used for cleaning multiple areas, is also possible.
  4. Manage multiple detergents at optimum concentrations, and one unit can handle numerous washes such as neutral washing and alkaline washing.
  5. With the touch panel of the control panel, it is possible to set additional cleaning patterns.
