Cleaning Nozzle
MOTOR-DRIVEN 3-dimentional nozzle
Electrical or air motor allow action control and position detection.
-

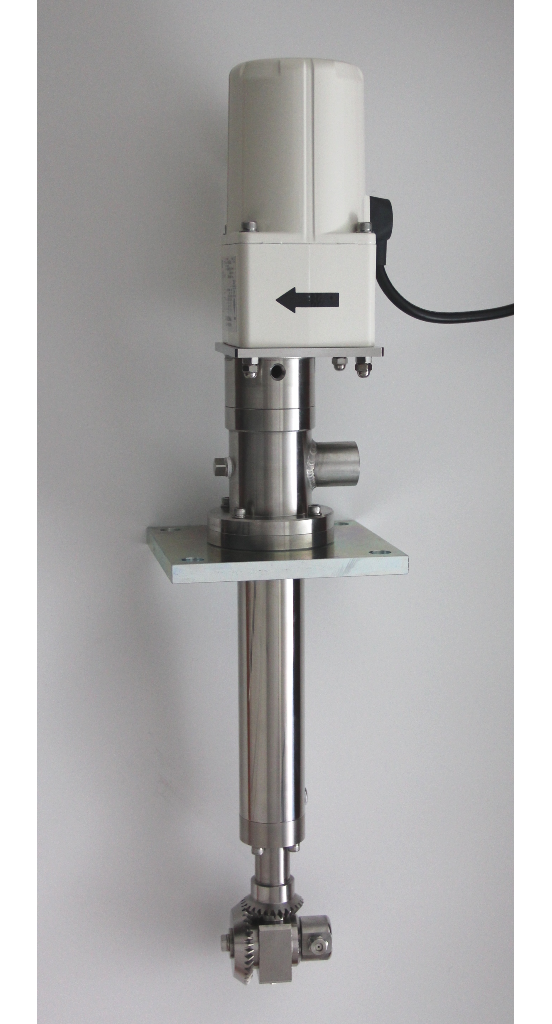

Image of product
-
Specifications
Type ESK33 ASK33 Rotation 3D-rotation Drive Waterproof Electric Motor(3 Phase 200V/220V 40W) Air Motor Material SUS (standard SUS304) Possible Length 426mm~3000mm 453mm~3000mm Diameter RC1/2 Nozzle tips 2 Option Safty motor(eG3) We will manufacture it with optimum specifications if you inform us "working pressure", "discharge flow rate",and "fluid"of your machine in addition to the above.
Image of designing
RS:ROTOR BALL
High versatility and abundant variation of spray pattern
-
Image of product
-
Specifications

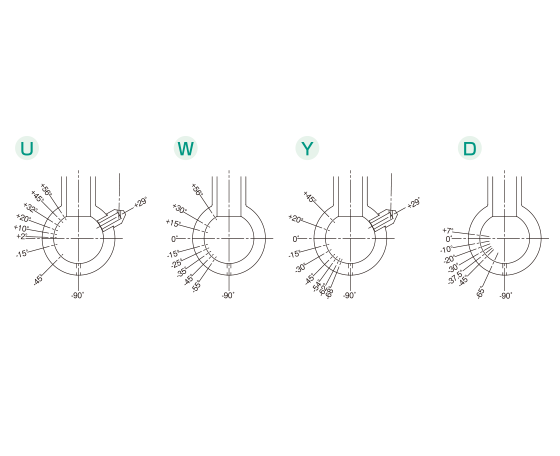

Type RS40 RS50 RS80 Rotation 2D-rotation Drive water pressure Material SUS (standard SUS316) Rotating diameter Φ50mm Φ70mm Φ88mm Injection type 4types Option • Measures to prevent falling • Change material • Buffing on outer surface • Electrolytic polishing • Change injection pattern Injection type
Watch the feature with movie
RF: ROTOR BALL
PTFE material ,which has corrosion resistance ,rarely damage the tank even if it falls by any chance.
-

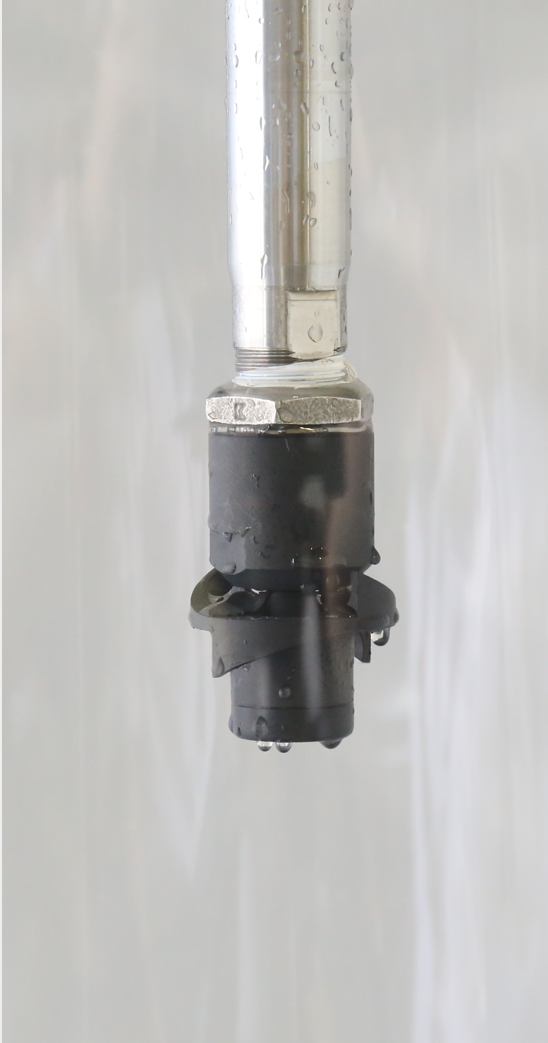

Image of product
-
Specifications
Type RF04 RF08 Rotation 2D-rotation Drive water pressure Material PTFE Rotating diameter Φ55mm Φ85mm Injection type Utype:standard Option • Measures to prevent falling Image of designing
Watch the feature with movie
TURBO DISC
High cleaning performance with a compact body.
-
Image of product
-
Specifications
Type TBD25 TBD75 TBD100 TBD150 Rotation 2D-rotation Drive water pressure Material SUS316 Rotating diameter Φ28mm Φ38mm Φ51mm Φ70mm Injection type 360°:standard Option • Buffing on outer surface • Change material
-
