Weighting・filling equipment
Weighing equipment
Customer’s concept
□We request to fill a large capacity IBC
□We request an automatic/manual weighing in a series of steps
Examples of proposal and design of KIT
□An automatic weighing of a large capacity IBC is available due to KIT’s
□In cooperation with the docking station, smooth and precise weighing is materialized.
【Installed example】
Weighing equipment for a large capacity IBC
The equipment which weighs and transports from IBC (1400L)to IBC (1800L)
| Product specification example | |
|---|---|
| Weight : | about 8.7t |
| The electrical consumption : | 19kW |
| Facility : | Docking unit, Exhaust hood unit Weighing machine, Injection hopper, Rotary valve, Conveyor, Platform, Control panel. |
| Weighing conditions : | ●Accuracy：1/3000 ●Minimum scale：500g ●Weighing：1.5t |
| Operation : | Control panel/Touch panel |
| ※The specifications can be changed depending on the container form, inner structure and weight. | |

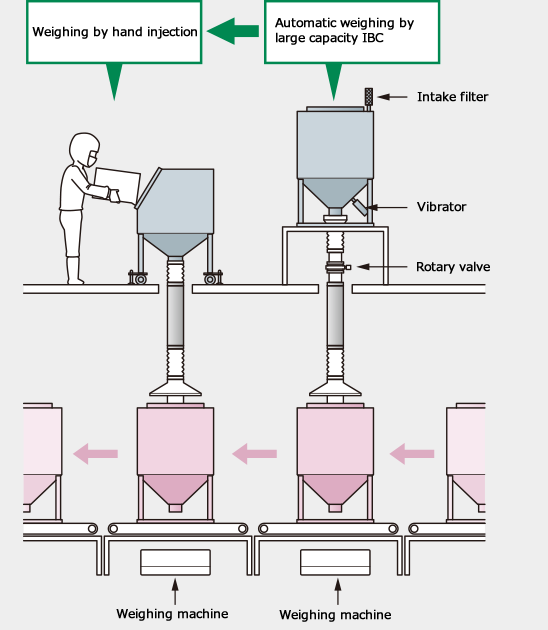

Introduction image

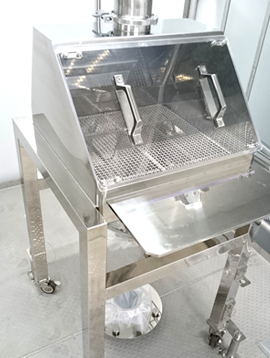

Manual feed hopper

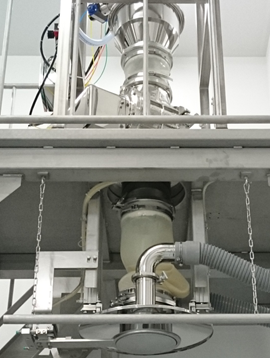

Connection
Exhaust hood unit
Equipment for weighing large capacity two times: automatic weighing as well as manual feeding.In cooperation with a rotary valve or weighing machine, 1/3000 precision is secured.

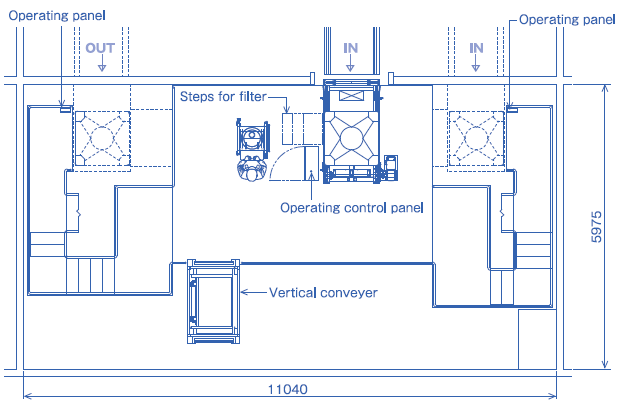

Design image

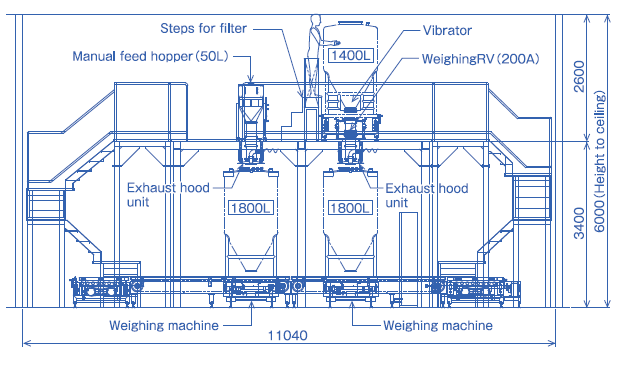

Design image
