INJECT/DISCHARGE STATION

Inject /Discharge Station

  • Customer’s concept

    1. We request to discharge and inject powder and tablet
    2. We request to prevent powder scattering and tablet breakage as much as possible.

    Examples of proposal and design of KIT

    1. KIT introduces a docking station matching each characteristic of powder and tablet.
    2. KIT comprehensively designs and produces the handling related to injection and discharge.

  • Installed example
    Injection equipment for powder and tablet
    Discharge and injection equipment from powder IBC to tablet machine to tablet IBC

    Specifications
    Weight: about 0,3 t
    Electrical Consumption : 1kW
    Facility Docking device for injecting into tablet machine
    Tablet machine discharge runner SUS
    Platform hopper
    Discharge conveyor side electric-powered lifter
    Upper lid holder, Upper holder detector
    Operation Control panel, Touch panel
    *Specification is an example.

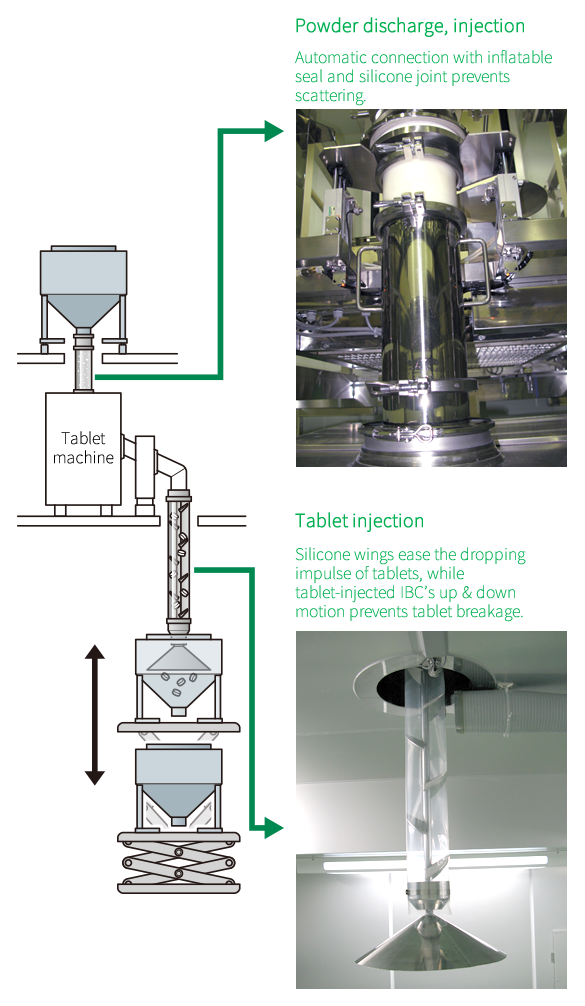

  • Introduction image

    Introduction image

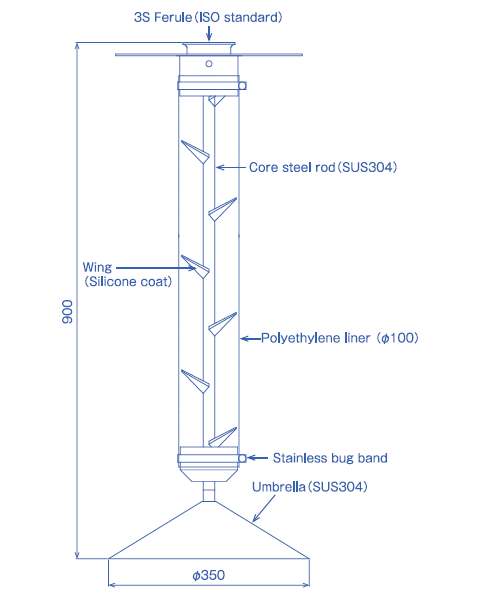

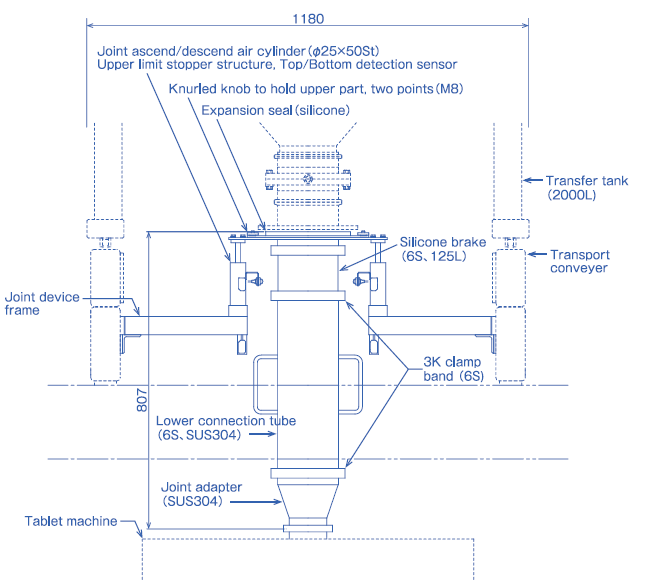

  • Design image

    Design image

    Design image

    Design image

  • Introduction example:1


    IBC is lifted and revoled by the lifter automatically and docks to the feeding device and fills tablets into another container. The shooter can shrink so that the shooter will not be buried even if the tablet is full in the bottom container.
    It is a motion picture of the device published at Interpex Japan in 2017.

  • Introduction example:2


    The tablet falls slowly by the internal balloon.
    It is a motion picture of the device published at Interpex Japan in 2017.
